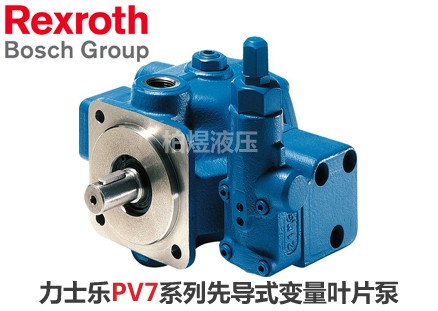

力士樂葉片泵PV7先導式變量葉片泵
– 變排量
– 低工作噪音
– 由于液壓動壓潤滑的滑動軸承而擁有長的軸承壽命
– 擁有壓力控制和流量控制的可能性
– 很小的磁滯
– 極短的上調和下調時間
– 安裝和連接尺寸符合
? VDMA 24560 第 1 部分
? ISO 3019/2
– 適用于 HETG 和 HEES 介質
– 標準的 PV7 系列的泵能以多種形式組合成多聯泵
– PV7 泵同樣能與內嚙合齒輪泵、外嚙合齒輪泵、軸向柱塞泵
和徑向柱塞泵組合
| 力士樂葉片泵PV7先導式變量葉片泵型號如下（無法一一羅列更多請聯系客服）： | |
| PV7-1X/63-71RE07MC3-16 | PV7-1X/100-118RE07MD3-16 |
| PV7-1X/63-71RE07MW0-16WG | PV7-1X/10-20RE01MD5-10 |
| PV7-1X/25-30RE01MW0-16WG | PV7-1X/40-45RE37MW5-16WG |
| PV7-1X/100-118RE07MC5-16WG | PV7-1X/63-94RE07MC7-08WG |
| PV7-1X/40-45RE37MW6-16WH | PV7-1X/100-118RE07MD6-16 |
| PV7-1X/40-45RE37MC5-16WG | PV7-1X/100-118RE07MC0-16 |
| PV7-1X/63-71RE07MD0-16 | PV7-1X/40-45RE37MC0-16-P90 |
| PV7-1X/25-30RE01MC0-16-P100Q38 | PV7-1X/100-150RE07MC0-08-A464 |
| PV7-1X/100-118RE07MD0-16 | PV7-1X/10-14RE01MN0-16 |
| PV7-1X/40-45RE37MC5-16 | PV7-1X/100-118RE07MC5-16 |
| PV7-1X/25-30RE01KC3-16 | PV7-1X/10-20RE01MC5-10WG |
| PV7-1X/25-30RE01MW0-16 | PV7-1X/16-20RE01MD3-16 |
| PV7-1X/16-20RE01MC0-16-P110 | PV7-1X/40-45RE37KD0-16-C3.1 |
| PV7-1X/63-71RE07MC5-16WH | PV7-1X/16-30RE01KC0-08 |
| PV7-1X/10-14RE01MD5-16 | PV7-1X/63-71RE07MC6-16 |
| PV7-1X/16-20RE01KD0-16 | PV7-1X/10-14RE01MW0-16 |
| PV7-1X/63-71RE07MC0-16-C3.1 | PV7-1X/16-30RE01MW0-08WH |
| PV7-1X/100-150RE07MC0-08-A446 | PV7-1X/25-30RE01MC5-16WG |
| PV7-1X/10-20RE01MC0-10-A497 | PV7-1X/100-150RE07KC0-08 |
| PV7-1X/100-150RE07MD5-08 | PV7-1X/25-45RE01MC0-08-P25Q50 |
| PV7-1X/40-71RE37MC5-08 | PV7-1X/10-14RE01KD0-16 |
| PV7-1X/16-20RE01MC0-16-P120 | PV7-1X/100-150RE07MW0-08WH |
| PV7-1X/16-20RE01MC5-16WG | PV7-1X/10-20RE01MW0-10WH |
| PV7-1X/63-94RE07KD0-08 | PV7-1X/63-71RE07MW0-16WH |
| PV7-1X/63-71RE07MC7-16WH | PV7-1X/40-45RE37MC0-16 |
| PV7-1X/63-94RE07MC0-08-P80Q114 | PV7-1X/40-45RE37MC5-16WH |
| PV7-1X/10-14RE01KN0-16 | PV7-1X/25-30RE01MC5-16WH |
| PV7-1X/63-71RE07KC0-16 | PV7-1X/10-20RE01MC3-10 |
| PV7-1X/16-20RE01MN0-16 | PV7-1X/25-45RE01MW0-08WH |
| PV7-1X/63-71RE07MN0-16 | PV7-1X/63-71RE07KD0-16 |
| PV7-1X/16-20RE01MC8-16 | PV7-1X/40-71RE37MW0-08WH |
| PV7-1X/40-45RE37MD0-16-P50Q36 | PV7-1X/40-45RE37MC7-16WG |
| PV7-1X/100-118RE07MN5-16 | PV7-1X/25-45RE01MC7-08WG |
| PV7-1X/63-71RE07MC7-16 | PV7-1X/100-150RE07MC3-08 |
| PV7-1X/40-45RE37KC0-16 | PV7-1X/63-94RE07MC5-08 |
| PV7-1X/16-20RE01MC0-16-P60Q26 | PV7-1X/16-20RE01MC5-16 |
| PV7-1X/40-71RE37MC5-08WG | PV7-1X/25-45RE01MC7-08 |
| PV7-1X/25-30RE01MW5-16WH | PV7-1X/10-20RE01MD0-10 |
| PV7-1X/63-71RE07MD0-16-Q90 | PV7-1X/16-30RE01MC3-08 |
| PV7-1X/100-150RE07MC7-08 | PV7-1X/100-118RE07MN0-16 |
| PV7-1X/10-20RE01MC5-10 | PV7-1X/25-30RE01MC5-16WH-A234 |
| PV7-1X/100-150RE07MC5-08WH | PV7-1X/25-30RE01MW0-16WH |
| PV7-1X/10-20RE01MC7-10WH | PV7-1X/25-45RE01MC5-08 |
| PV7-1X/40-45RE37MC8-16 | PV7-1X/16-20RE01MW0-16WH |
| PV7-1X/16-20RE01MC3-16-P50Q25 | PV7-1X/100-118RE07KC0-16 |
| PV7-1X/40-71RE37MC5-08WH | PV7-1X/100-118RE07MC6-16 |
| PV7-1X/40-71RE37MC3-08 | PV7-1X/40-71RE37MC7-08WH |
| PV7-1X/10-14RE01MW0-16WH | PV7-1X/10-20RE01MC3-10-A497 |
| PV7-1X/16-20RE01MC3-16 | PV7-1X/16-20RE01MC5-16WH |
| PV7-1X/63-71RE07MC3-06-A460 | PV7-1X/16-30RE01MC5-08WH |
| PV7-1X/10-14RE01MC0-16-P100 | PV7-1X/63-94RE07MC5-08WH |
| PV7-1X/10-14RE01MC3-16 | PV7-1X/40-45RE37MD0-16 |
| PV7-1X/100-118RE07MC7-16WH | PV7-1X/25-45RE01MC5-08WH |
| PV7-1X/16-20RE01MC0-16 | PV7-1X/63-71RE07MC5-16WG |
| PV7-1X/63-71RE07KC3-16 | PV7-1X/10-20RE01MC5-10WH |
| PV7-1X/16-20RE01MC7-16 | PV7-1X/10-14RE01MC7-16 |
| PV7-1X/63-94RE07MC0-08 | PV7-1X/16-20RE01MC0-16-P100Q29 |
| PV7-1X/25-30RE01MC0-16-P100Q36 | PV7-1X/40-45RE37MW5-16WH |
| PV7-1X/10-14RE01MC0-16-P45 | PV7-1X/25-45RE01MN0-08 |
| PV7-1X/25-30RE01MC0-16 | PV7-1X/63-94RE07MC0-08-P75 |
| PV7-1X/63-71RE07MW5-16WH | PV7-1X/25-30RE01MC5-16 |
| PV7-1X/40-71RE37MD0-08 | PV7-1X/100-150RE07MD0-08 |
| PV7-1X/10-20RE01MC7-10 | PV7-1X/10-14RE01MD3-16 |
| PV7-1X/100-118RE07MW0-16WH | PV7-1X/100-118RE07KD0-16 |
| PV7-1X/10-14RE01MC5-16 | PV7-1X/63-94RE07MN0-08 |
| PV7-1X/10-14RE01KC0-16 | PV7-1X/40-45RE37MC3-16 |
| PV7-1X/40-45RE37MC7-16 | PV7-1X/16-20RE01MC0-16-C3.1 |
| PV7-1X/40-45RE37MC0-16-A446 | PV7-1X/100-118RE07MW0-16WG |
| PV7-1X/100-150RE07MC0-08 | PV7-1X/63-94RE07MC5-08WG |
| PV7-1X/16-20RE01KC0-16 | PV7-1X/40-55RE37MC0-08-A449 |
| PV7-1X/63-94RE07MD0-08 | PV7-1X/16-20RE01MD0-16-Q25 |
| PV7-1X/40-45RE37MD0-16-P50Q39 | PV7-1X/63-71RE07MD0-16-Q65 |
| PV7-1X/16-30RE01MC0-08 | PV7-1X/40-45RE37MW0-16 |
| PV7-1X/40-71RE37MC0-08 | PV7-1X/100-118RE07MW6-16WH |
| PV7-1X/16-30RE01MC5-08WG | PV7-1X/10-20RE01MC0-10 |
| PV7-1X/63-71RE07MW0-16 | PV7-1X/63-94RE07KC0-08 |
| PV7-1X/40-45RE37MC7-16WH | PV7-1X/10-14RE01MC0-16-P60Q15 |
| PV7-1X/63-71RE07KW0-16WG | PV7-1X/100-118RE07KC5-16 |
| PV7-1X/25-30RE01MC7-16 | PV7-1X/63-71RE07MC5-16 |
| PV7-1X/25-30RE01KD0-16 | PV7-1X/10-14RE01MC5-16WH |
| PV7-1X/10-20RE01MC0-10-P45 | PV7-1X/16-20RE01MW0-16 |
| PV7-1X/16-30RE01MD0-08 | PV7-1X/25-45RE01MD0-08 |
| PV7-1X/100-118RE07MC7-16 | PV7-1X/10-14RE01MC0-16-P90 |
| PV7-1X/16-20RE01MC7-16WH | PV7-1X/40-45RE37MD0-16-C3.1 |
| PV7-1X/40-45RE37MW0-16WG | PV7-1X/40-45RE37KD0-16 |
| PV7-1X/40-45RE37MC0-16-P80 | PV7-1X/16-30RE01MC5-08 |
| PV7-1X/100-150RE07KD0-08 | PV7-1X/40-45RE37MW0-16WH |
| PV7-1X/10-14RE01MD0-16 | PV7-1X/100-150RE07MC5-08WG |
| PV7-1X/16-30RE01MC7-08 | PV7-1X/63-71RE07MC0-06-A460 |
| PV7-1X/10-14RE01MC0-16 | PV7-1X/16-30RE01MN0-08 |
| PV7-1X/25-45RE01KC0-08 | PV7-1X/63-71RE07MD0-16-Q85 |
| PV7-1X/100-150RE07MN0-08 | PV7-1X/63-94RE07MC3-08 |
| PV7-1X/16-20RE01MW0-16WG | PV7-1X/25-30RE01MD0-16 |
| PV7-1X/10-14RE01MW0-16WG | PV7-1X/25-30RE01MD5-16WH |
| PV7-1X/10-14RE01MC0-16-P140Q10 | PV7-1X/63-71RE07MD5-16 |
| PV7-1X/40-55RE37MC3-08-A449 | PV7-1X/40-45RE37MD3-16 |
| PV7-1X/63-71RE07MC0-16 | PV7-1X/40-71RE37MC7-08WG |
| PV7-1X/40-45RE37KC3-16 | PV7-1X/10-20RE01KC0-10 |
| PV7-1X/25-45RE01MC0-08 | PV7-1X/25-30RE01KC0-16 |
| PV7-1X/100-150RE07MC5-08 | PV7-1X/40-71RE37KC0-08 |
| PV7-1X/25-30RE01MC6-16 | PV7-1X/16-20RE01MC0-16-P55 |
| PV7-1X/25-45RE01MC3-08 | PV7-1X/40-45RE37MC6-16 |
| PV7-1X/63-94RE07MW0-08WH | PV7-1X/16-20RE01MC0-16-P52 |
| PV7-1X/16-20RE01MD0-16 | PV7-1X/25-30RE01MN0-16 |
| PV7-1X/10-14RE01MC6-16 | PV7-1X/16-20RE01MC6-16 |
| PV7-1X/100-118RE07MC5-16WH-P125Q116 | PV7-1X/16-20RE01MC3-16-C3.1 |
| PV7-1X/100-118RE07MC5-16WH | PV7-1X/16-20RE01MD6-16 |
| PV7-1X/25-30RE01MC3-16 | PV7-1X/63-94RE07MC0-08-P50Q116 |
| PV7-1X/100-118RE07MC7-16WG | PV7-1X/16-20RE01MC0-16-P70Q20 |
| PV7-1X/63-71RE07MD6-16 | PV7-1X/100-118RE07MC3-16 |
| PV7-1X/40-45RE37MN0-16 | PV7-1X/40-71RE37MC7-08 |
